gold-miner: analyzes unknown traffic

The gold-miner tool is the core of the package that takes a training profile created using both gold-miner-trainer and gold-miner-trainer-aggregator and uses it to try and predict an unknown traffic source.

Example Invocation

The following example command line processes a PCAP file containing unknown data (unknown.pcap) using a training-profile created from the gold-miner-trainer gold-miner-trainer-aggregator tools. It specifically looks for the mail label. Note that multiple labels can be passed to the -g flag in order to compare various values to determine what the best guess might be.

gold-miner -r unknown.pcap -p training-profile.fsdb -g mail

Example Output

The output includes a bunch of columns in a tab-separated file (called an FSDB file). Example output may look like:

Interpreting Tab-Separated Value Output

The output of this utility by default is a FSDB formatted dataset containing (see below for turning on json output instead):

#fsdb -F t timestamp:d identifier token confidence total:l
1612276702.252115    (50, '10.0.3.2', '10.0.6.2')    email-client    0.019922011881270296    1
1612276702.252115    (50, '10.0.3.2', '10.0.6.2')    email-server    0.09949107222576414     1
1612276702.252115    (50, '10.0.3.2', '10.0.6.2')    https-client    0.1108216386959876      1
1612276702.252115    (50, '10.0.3.2', '10.0.6.2')    https-server    0.0     1
1612276702.252115    (50, '10.0.3.2', '10.0.6.2')    ftp-client      0.0     1
1612276702.252115    (50, '10.0.3.2', '10.0.6.2')    ftp-server      0.0     1
...
1612276796.641313    (50, '10.0.3.2', '10.0.6.2')    email-client    0.7168803043442527      1400
1612276796.641313    (50, '10.0.3.2', '10.0.6.2')    email-server    0.21853768852005073     1400
1612276796.641313    (50, '10.0.3.2', '10.0.6.2')    https-client    0.09337264365783604     1400
1612276796.641313    (50, '10.0.3.2', '10.0.6.2')    https-server    0.3331007977800903      1400
1612276796.641313    (50, '10.0.3.2', '10.0.6.2')    ftp-client      0.06126245747562031     1400
1612276796.641313    (50, '10.0.3.2', '10.0.6.2')    ftp-server      0.16666655917372097     1400

The columns in question contain:

  1. a packet timestamp

  2. an identifier (5-tuple, 3-tuple or IPSec specific)

  3. a token being searched for (eg: “mail”)

  4. a confidence value 0-1

  5. the packet counts seen per identifier so far

Example Graph

The multi-key-graph tool that comes with the multikeygraph python package can be used to graph the results:

multi-key-graph -k token -c confidence -o graph.png gold-mine-output.fsdb
../_images/b1f1fc5a469f926f506c1a1520b0f613f4ac2df146f4fba7b4e365bbbece6d15.test.0.png

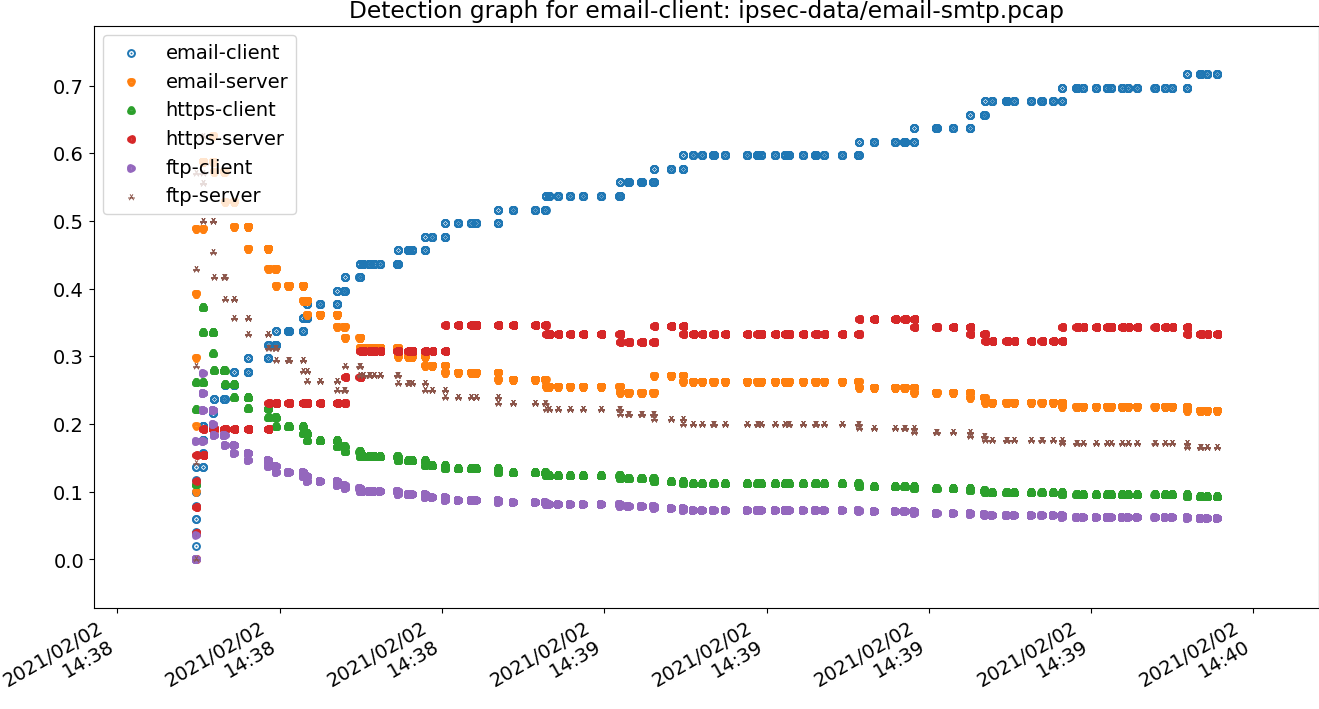

This example graph shows that after a number of packets the email-client label becomes the most likely prediction among the options being graphed.

Selecting a sub-algorithm to use

gold-miner supports four different (sub-)algorithms for identifying traffic:

  • comparison

  • comparison-wide

  • linear

  • lms

The following algorithms are available for use:

algorithm: comparison

This is the default, and works best with entirely labeled traffic with no unknown traffic expected. It works by comparing an unknown flow against all known profiles to differentiate among the different types in the training profile. Thus, it will not work when applied to a traffic sample with an unprofiled traffic flow within it.

algorithm: linear

The linear algorithm calculates the difference from a given flow vs the training profile, regardless of what the other training flows use. This may succeed at times when the comparison algorithm doesn’t, especially in cases of unknown traffic being mixed in with the traffic being prioritized.

algorithm: lms

The lms algorithm is similar to the linear algorithm, but uses the common square of the difference instead of a linear distance. These two algorithms usually perform closely together in performance but one may be better than another.

algorithm: comparison-wide

This is rarely the right algorithm to use, but is left in for the moment. It may go away in the future.

JSON output

The gold-miner tool can also output a stream JSON records if that’s easier to parse. Run gold-miner with -j to enable this feature, or -J to output a flattened JSON output.

Command Line Arguments

introduction - CLI interface

Scans an interface or pcap file for the likelihood of traffic within an ipsec/encrypted tunnel for a particular class that you may want to prioritize.

introduction [-h] [-i INTERFACE] [-r PCAP_FILE] [-p TRAINING_PROFILE] [-t THRESHOLDS] [-j]
             [-J] [-u] [-g GOLD_PROFILES [GOLD_PROFILES ...]]
             [-a [ALL_PROFILES [ALL_PROFILES ...]]] [--algorithm ALGORITHM] [-n MAX_PACKETS]
             [-N REPORT_EVERY] [-L] [-C] [-P] [-R] [-k SIZE_KEY] [-F PACKET_FILTER]
             [-w HIGH_LOW_WATERMARK HIGH_LOW_WATERMARK] [-3] [--timing]
             [-T SEARCH_WINDOW_LENGTH] [-U SEARCH_WINDOW_TIME_FILE] [--log-level LOG_LEVEL]
             [--log-file LOG_FILE] [--window-analysis]
             [output_file]

introduction positional arguments

  • output_file - Where to send the output data to (default: <_io.TextIOWrapper name='<stdout>' mode='w' encoding='UTF-8'>)

introduction optional arguments

  • -h, --help - show this help message and exit

  • -i INTERFACE, --interface INTERFACE - The interface to monitor for ESP traffic (default: None)

  • -r PCAP_FILE, --pcap-file PCAP_FILE - Read in a PCAP file to analyze (default: None)

  • -p TRAINING_PROFILE, --training_profile TRAINING_PROFILE - The training profile to read for calculating percentages (default: None)

  • -t THRESHOLDS, --thresholds THRESHOLDS - Threshold file to use for determining success (default: None)

  • -j, --output-json - Output data in json format

  • -J, --output-flattened-json - Output data in json format, but flattened

  • -u, --output_ui - Output data in a window

  • -g GOLD_PROFILES, --gold-profiles GOLD_PROFILES - profiles to identify as 'gold' ; put multiple separated by ,s in an argument (default: None)

  • -a ALL_PROFILES, --all-profiles ALL_PROFILES - Keys to use for all the columns (gold and non-gold) (default: [])

  • --algorithm ALGORITHM - Algorithm value to use (lms, linear, comparison) (default: comparison)

  • -n MAX_PACKETS, --max-packets MAX_PACKETS - Maximum number of packets to read (default: -1)

  • -N REPORT_EVERY, --report-every REPORT_EVERY - only report results every N packets (default: None)

  • -L, --live-results - Print live results

  • -C, --curses - Turn on a curses view of the output results

  • -P, --percentage - Display results as a percentage

  • -R, --raw-values - Display raw-value results instead of confidence

  • -k SIZE_KEY, --size-key SIZE_KEY - The key to use for pkt size data (default: e_pkt_len)

  • -F PACKET_FILTER, --packet-filter PACKET_FILTER - Only process these sniffed packets (default: None)

  • -w HIGH_LOW_WATERMARK, --high-low-watermark HIGH_LOW_WATERMARK - Use high/low watermarks to restrict output. The first argument should be the high value, and the second the low value. (default: None)

  • -3, --three-tuple-only - Only use 3-tuples for analyzing packets instead of 5

  • --timing - Add the analysis time length information to the output

  • -T SEARCH_WINDOW_LENGTH, --search-window-length SEARCH_WINDOW_LENGTH - Fixed time stamp length to check data over (default: None)

  • -U SEARCH_WINDOW_TIME_FILE, --search-window-time-file SEARCH_WINDOW_TIME_FILE - A FSDB file of times to search per packet size (default: None)

  • --log-level LOG_LEVEL, --ll LOG_LEVEL - Define the logging verbosity level (debug, info, warning, error, fotal, critical). (default: info)

  • --log-file LOG_FILE, --lf LOG_FILE - Define a logfile to save logging output to instead of stderr (default: None)

  • --window-analysis - Do window analysis (developer mode)
