The following report describes the test and evaluation of the following datasets:

Evaluation Parameter	Value
Classifier algorithm	lms
Training files	6
Test files	6
Processors used	8
Processing time	0.0976 minutes
Result AUC	0.8444

Result summary

Summarized training results

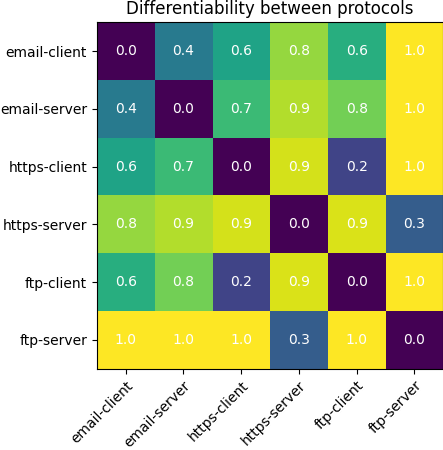

Training analysis estimates the difference in fingerprinting the various protocols in the chart below, where a lighter color (yellow) represents greater diversity between the protocols and easier to identify against the corresponding.

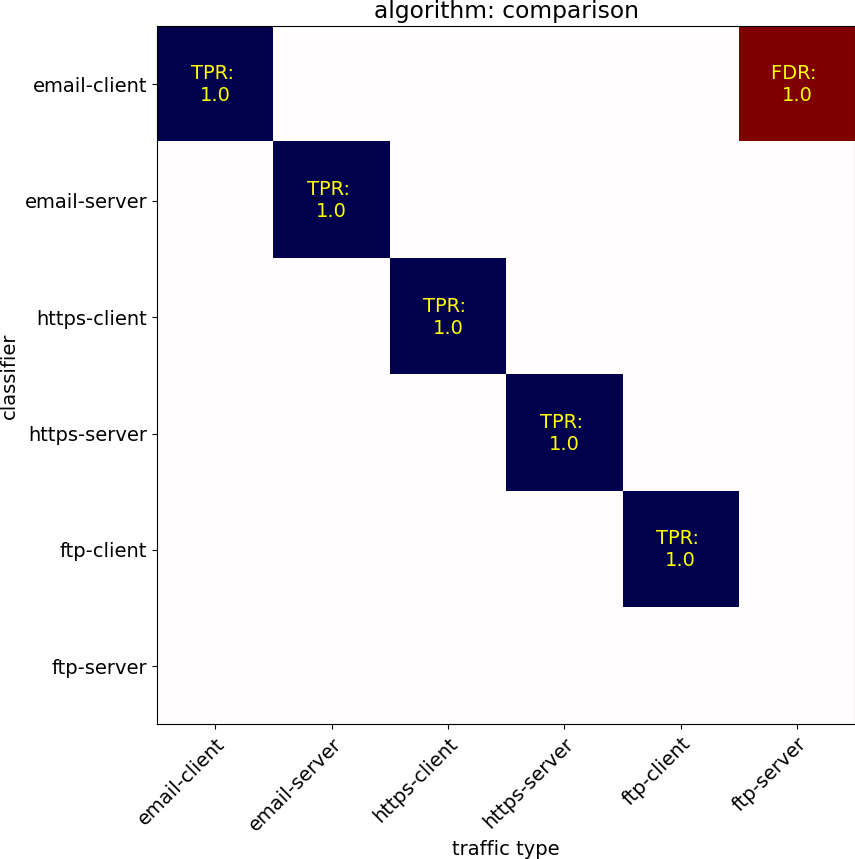

Summarized test evaluation results

Evaluation results, with blue indicating good (true-positives) and red indicating false positive rates. These results are likely more accurate than the estimated similarity above.

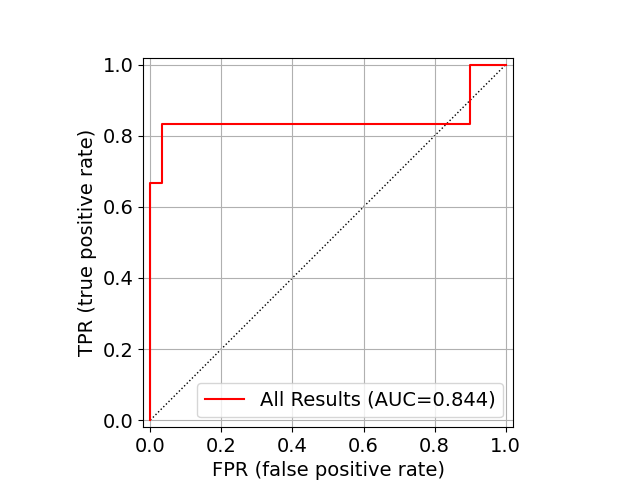

The ROC curve for these test results:

Measured Classifier Precisions

Classifier	tp	fp	Precision
email-client	1	1	0.5000
email-server	1	0	1.0000
https-client	1	0	1.0000
https-server	1	0	1.0000
ftp-client	1	0	1.0000

Individual Classifier ROCs

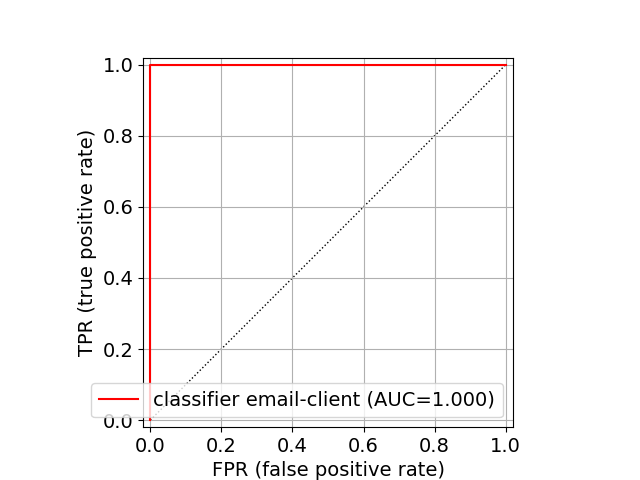

Classifier ROC: email-client

Classifier ROC: email-server

Classifier ROC: https-client

Classifier ROC: https-server

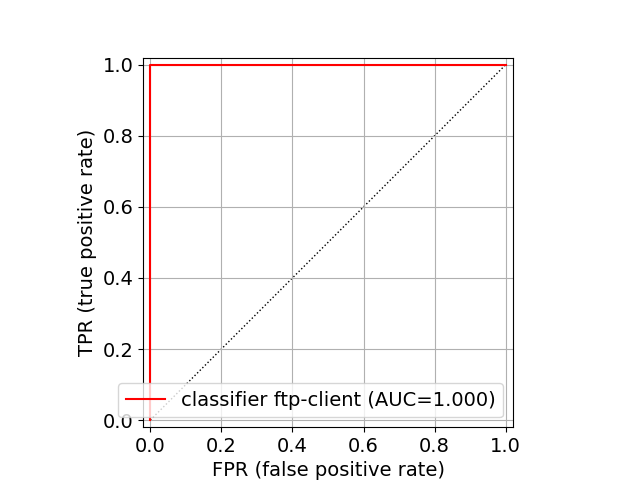

Classifier ROC: ftp-client

Detailed test results

The following section describes each test case and whether the classification model successfully identified the traffic in question. Each file below contains a graph showing the detection pseudo-confidence between 0.0 and 1.0, along with the classifier confidence scores per flow-identifier within the traffic observed.

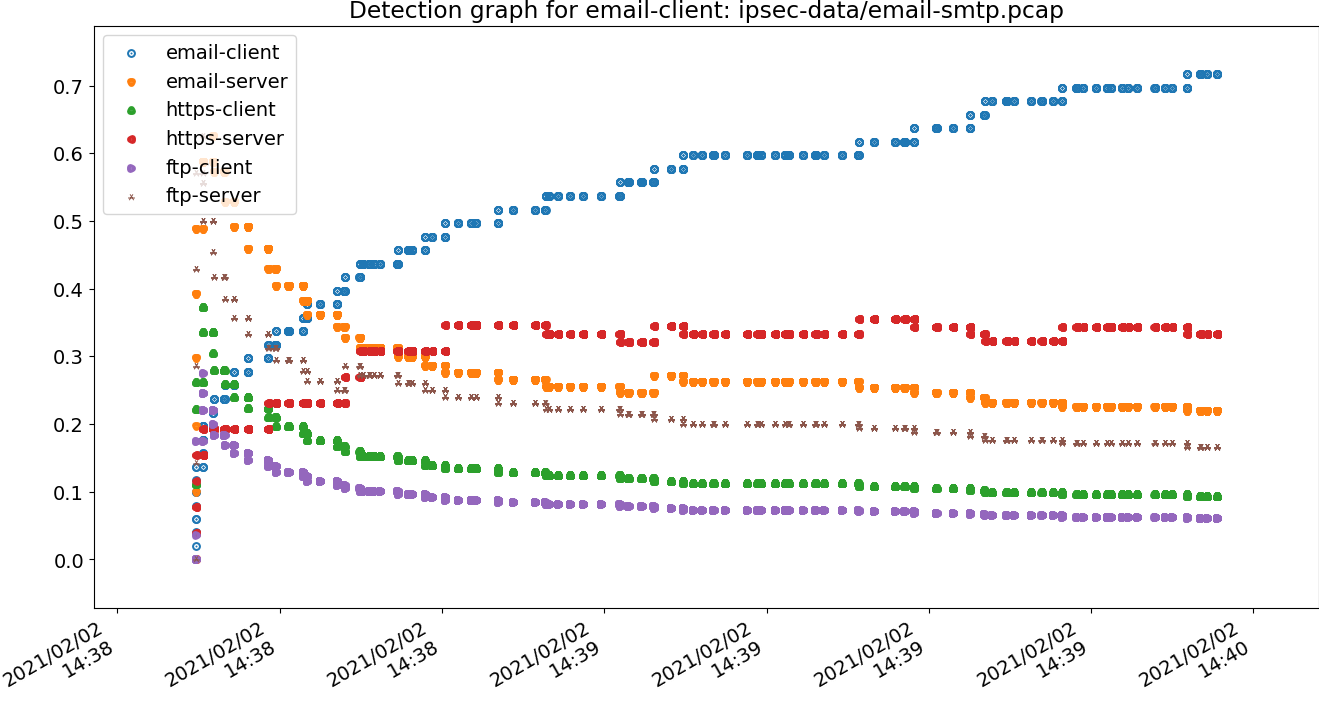

Test 1: email-client traffic

• File: ipsec-data/email-smtp.pcap

  • Filtered applied: esp and src 10.0.3.2
  • Packets processed: 1400

• Traffic label: email-client

• Processing time: 0.0107 minutes

Flows identified:

• flow identifier: (50, ‘10.0.3.2’, ‘10.0.6.2’)
  • Total packets: 1400

  Label	Score
  email-client	0.7169
  https-server	0.3331
  email-server	0.2185
  ftp-server	0.1667
  https-client	0.0934
  ftp-client	0.0613

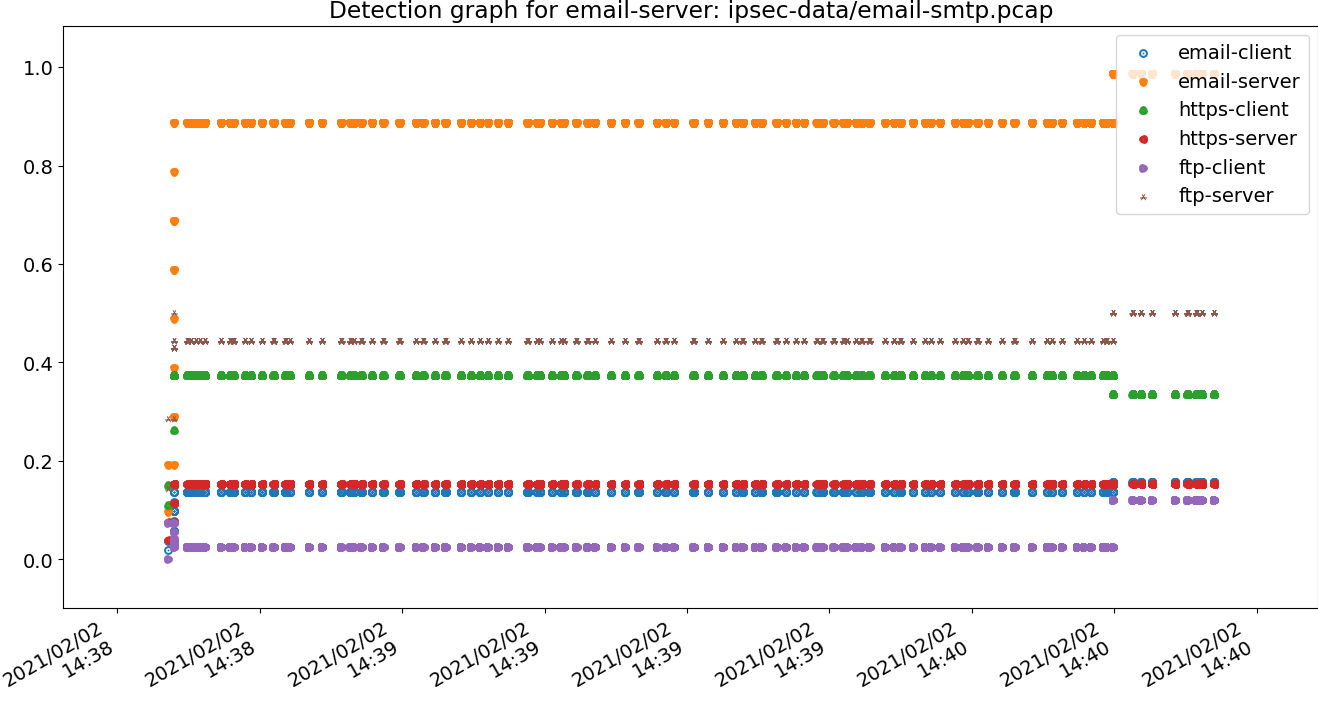

Test 2: email-server traffic

• File: ipsec-data/email-smtp.pcap

  • Filtered applied: esp and src 10.0.6.2
  • Packets processed: 1400

• Traffic label: email-server

• Processing time: 0.0087 minutes

Flows identified:

• flow identifier: (50, ‘10.0.6.2’, ‘10.0.3.2’)
  • Total packets: 1400

  Label	Score
  email-server	0.9857
  ftp-server	0.5000
  https-client	0.3361
  email-client	0.1573
  https-server	0.1537
  ftp-client	0.1205

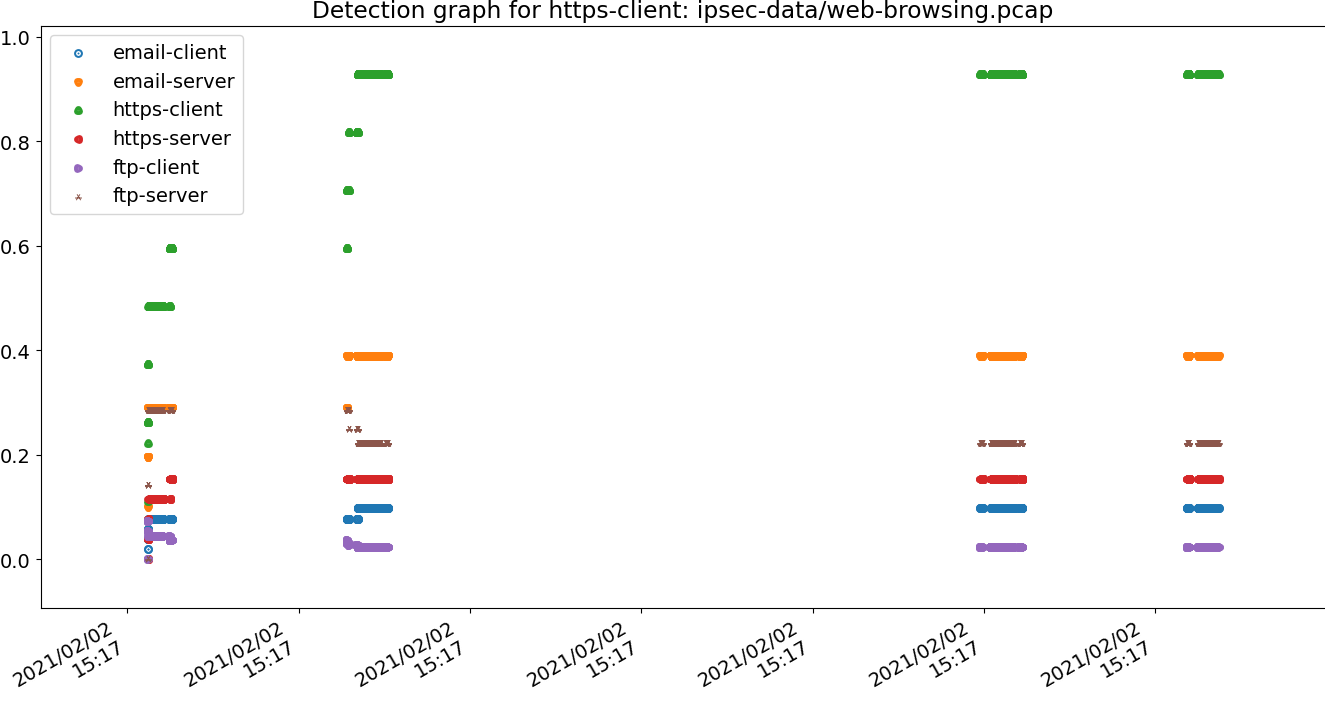

Test 3: https-client traffic

• File: ipsec-data/web-browsing.pcap

  • Filtered applied: esp and src 10.0.3.2
  • Packets processed: 1400

• Traffic label: https-client

• Processing time: 0.0079 minutes

Flows identified:

• flow identifier: (50, ‘10.0.3.2’, ‘10.0.6.2’)
  • Total packets: 1400

  Label	Score
  https-client	0.9286
  email-server	0.3898
  ftp-server	0.2222
  https-server	0.1537
  email-client	0.0976
  ftp-client	0.0243

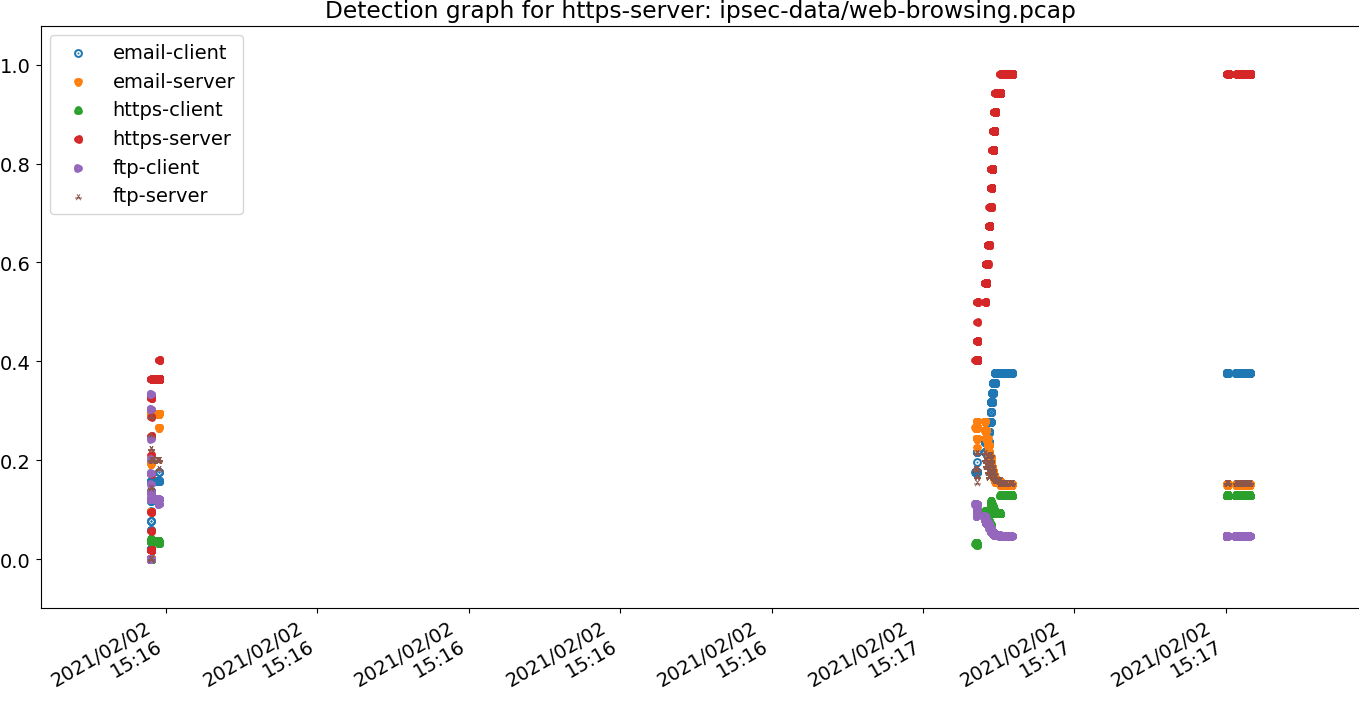

Test 4: https-server traffic

• File: ipsec-data/web-browsing.pcap

  • Filtered applied: esp and src 10.0.6.2
  • Packets processed: 1400

• Traffic label: https-server

• Processing time: 0.0120 minutes

Flows identified:

• flow identifier: (50, ‘10.0.6.2’, ‘10.0.3.2’)
  • Total packets: 1400

  Label	Score
  https-server	0.9806
  email-client	0.3772
  ftp-server	0.1542
  email-server	0.1493
  https-client	0.1293
  ftp-client	0.0469

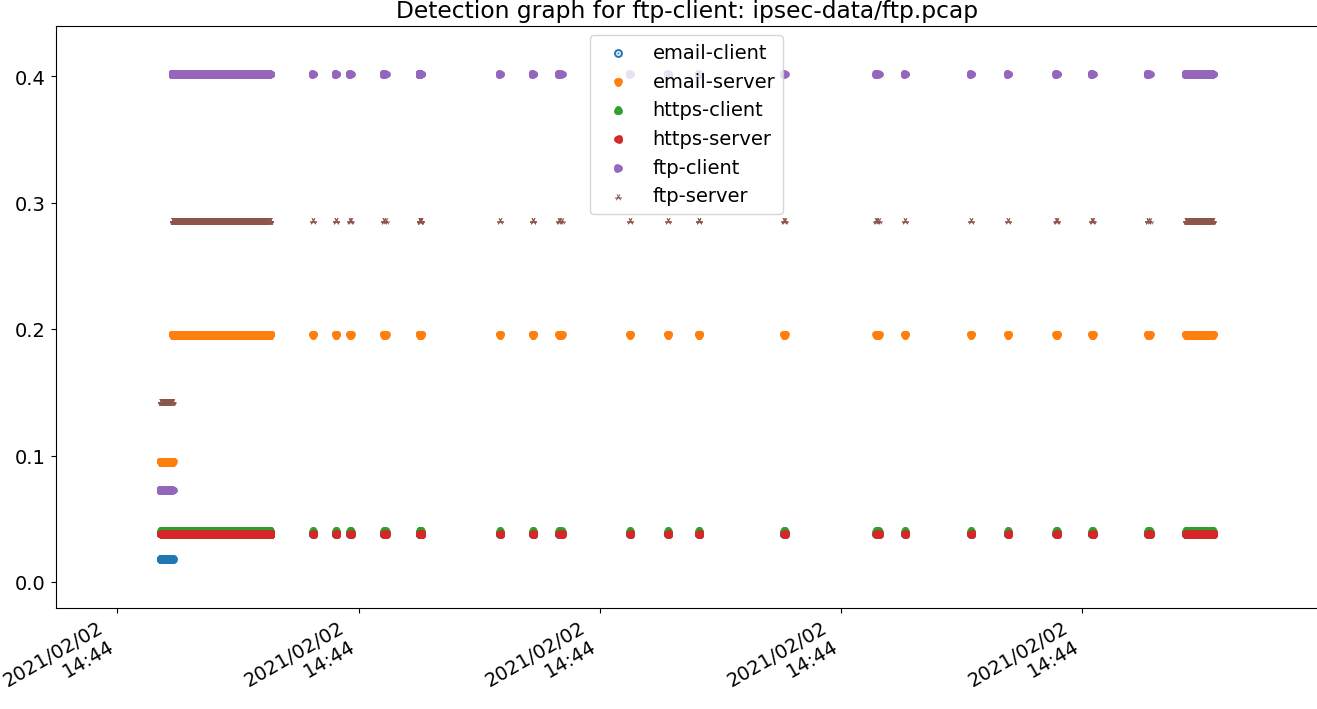

Test 5: ftp-client traffic

• File: ipsec-data/ftp.pcap

  • Filtered applied: esp and src 10.0.3.2
  • Packets processed: 1400

• Traffic label: ftp-client

• Processing time: 0.0038 minutes

Flows identified:

• flow identifier: (50, ‘10.0.3.2’, ‘10.0.6.2’)
  • Total packets: 1400

  Label	Score
  ftp-client	0.4018
  ftp-server	0.2857
  email-server	0.1954
  https-client	0.0407
  https-server	0.0383
  email-client	0.0380

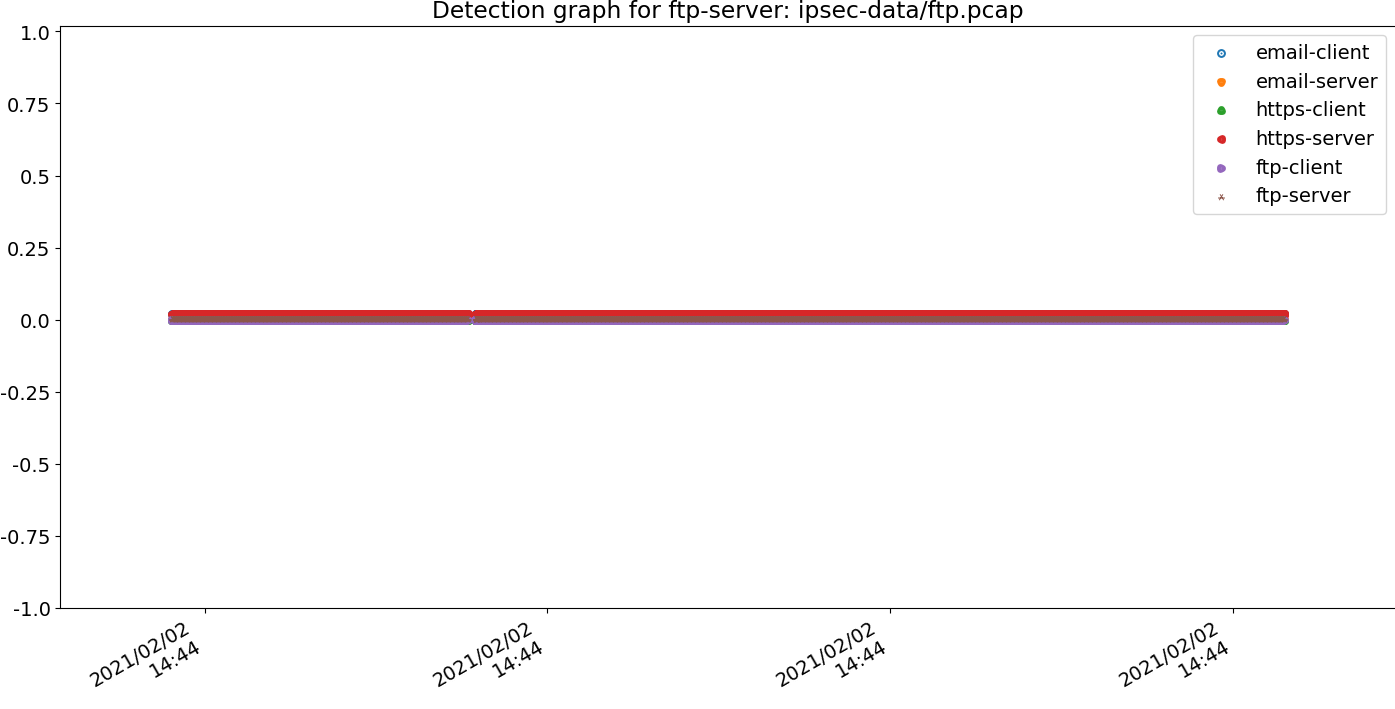

Test 6: ftp-server traffic

• File: ipsec-data/ftp.pcap

  • Filtered applied: esp and src 10.0.6.2
  • Packets processed: 1400

• Traffic label: ftp-server

• Processing time: 0.0043 minutes

Flows identified:

• flow identifier: (50, ‘10.0.6.2’, ‘10.0.3.2’)
  • Total packets: 1400

  Label	Score
  email-client	0.0200
  https-server	0.0195
  ftp-server	0.0012
  email-server	0.0000
  https-client	0.0000
  ftp-client	0.0000
